MD-880DH Double Head Bonding Machine

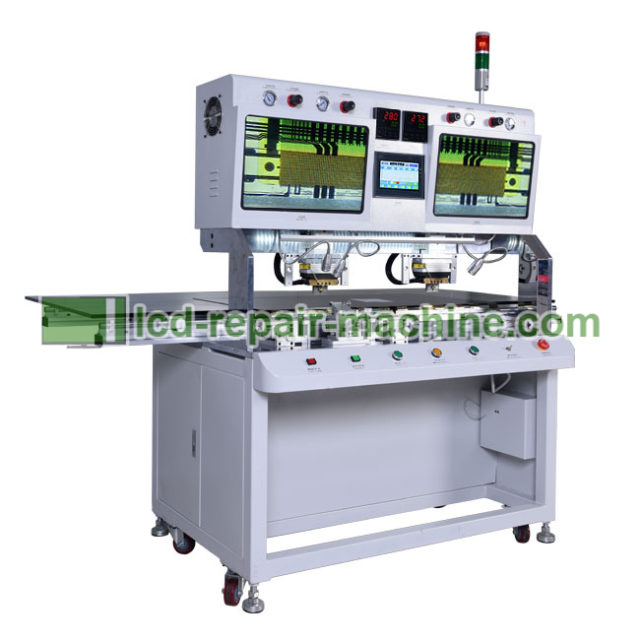

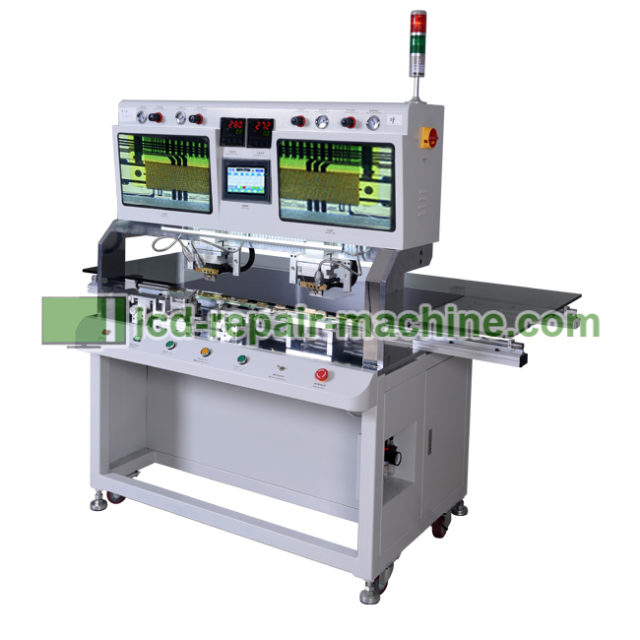

Standard double head bonding machine

General Details

MD-880DH Double Head Bonding Machine is designed for LCD/LED  TV repair, which can solve the problem of ACF/COF/TAB fault, the function of MD-880DH is replacing, bonding, re-bonding COF/TAB on LCD glass and PCB .

The bonding machines includes below models:

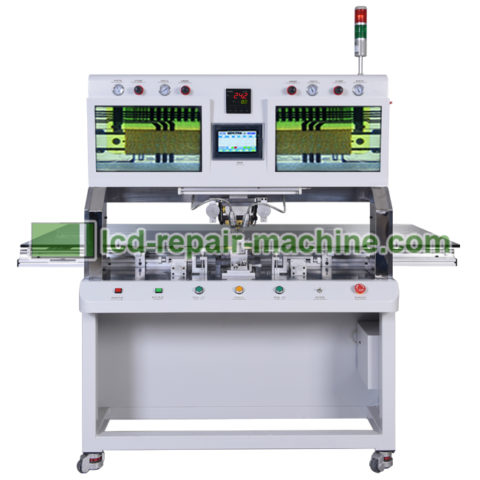

  1. MD-880SH single head LCD repair bonding machine;
  2. MD-880DH double head LCD repair bonding machine;
  3. MD-815SH single head LCD repair bonding machine-Mini Version
  4. MD-816SH Single Head Bonding Machine-Mini Version

Which machine should I choose and what’s the difference of the two machine?

Click here to read.

What is ACF/COF/TAB fault?

There is a picture below to show the ACF/COF/TAB fault of LCD TV.

There are some COFs/TABs to connect LCD glass and PCB boards, which called X COFs and Y COFs, some times vertical or horizon lines(bands) appeared on the LCD TV screen. On of the reason is the COF/TAB broken or disconnecting. In order to solve this problem, if the COF just disconnecting(not broken), use bonding machine to re-bond this COF; if the COF is broken(like chip broken), use bonding machine to replace it with a new COF.

lcd-cof-fault

What’s the payment and delivery time?

Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery

Delivery time: About one week.

How about the warranty?

Usually we provide 1 year standard warranty and whole life technical support.

How about the training?

We provide two training method: factory training and video training.

More detail please see here: Training

How you packing the machine when shipping?

LCD TV Repair Bonding Machine Package

How can I install the machine after I received?

Here is a video of MD-880SH disassembly procedure. You can refer to it and do the opposite procedure.?

MD-880SH Disassembly Procedure

LCD repair bonding machine introduction for repair LCD TV demo video?



Inquiry

    You can send your inquiry here, we will reply you ASAP. Or you can contact we directly: ATTN: Sammy Qin Email: sales@lcd-repair-machine.com Email/Skype: SammyQin@outlook.com TEL/WhatsAPP/WeChat: +86-18620492985

    Name (required)

    Email (required)

    WhatsApp or Skype(For quickly contact)

    Subject

    Inquiry Message

    Specification

    MD-880DH Specification—–
    Double Head Manual platform Automatic Pressure Machine

    1) Equipment Model Number:
    MD-880DH (Double Head)

    2) Device Description :
    Repair screen machine / Bonding machine

    3) Device Uses :
    FPC? COF?TAB? LCD Panel and PCB combination bonding

    4) Applicable LCD panel specifications :
    15″-65″

    5) Applicable LCD panel thickness :
    0.3MM-1.1MM[Single glass]

    6) Bonding IC number :
    Multiple / Panel Can be set

    7) Bind direction :
    X or Y Unidirection

    8) Bonding IC size :
    Replaceable blade according to IC specifications (The original machine is equipped 50(L)*1.2(W)*10(H) mm and 50(L)*2.0(W)*10(H) mm)

    9) Device processing time :
    TFT?3.8S/chip

    10) Production Beats :
    TAB?100 pcs/H

    11) Bonding Accuracy :
    Within ± 1.5?m (support 4K screen)

    12) Highest positioning accuracy setting :
    ±0.5?m (Currently domestic the highest index)

    13) Equipment requirements the work environment :
    Clean, No dust, Clean room

    14) Supply Pressure :
    0.5~0.7Mpa (Dry air source)

    15) Power Supply :
    AC 220V±10%?50HZ?3500W

    16) Cylinder Device :
    Japan SMC original thin cylinder MXS20-75/MXS20-100

    17) Heating Type :
    Pulse (rapid heating / cooling and auxiliary cooling function)

    18) PID Temperature Control System :
    Brand: YUDIAN (516 model)
    Adjustable heating curve Precision PID self-tuning type
    The peak temperature : within +/- 3 degrees Celsius
    Room temperature time to 180 degrees the response time within 2-3 seconds

    19) Hot pressing head :
    Materials: Japan Titanium
    origin: United States
    Plane precision (hot press side) :0.001mm
    Plane thickness 0.5 (Reserved 3 times grinding)

    20) Thermocouple Type :
    K type Original US OMEGA wire

    21) Industrial control units / Programmer :
    Import Panasonic PLC FX?C40T

    22) Image unit :
    Panasonic image processing system
    COF counterpoint: down counterpoint
    PCB counterpoint : None (Can be installed )
    Number of lenses : 2
    Microscopy: 30-120 Continuous zoom
    COF Display: 19-inch HD
    PCB counterpoint the display : None (Can be installed )
    Upper light source : have
    Down light source : have

    23?COF trimming unit :
    Origin: Taiwan
    Rail Type: U-rail (2056 high)
    Accuracy : 0.01
    Adjustable direction :X/Y/R
    R Itinerary : Coarse 360 degrees, fine tuning +/- 5 degrees

    24?COF Fixture : COF mechanical clamping type, Z tilt radius micrometer trimming

    25) Lens spinner unit :
    Control mode: X / Y / Z micrometer control
    Focus Adjustment: Manually adjust the focus

    26) Position detection : None

    27) Silicone / Teflon :
    Manual switching position

    28) LCD stage (platform) :
    Manual sliding or fixed optional ,automatic stage can be customized

    29) Alarm device :
    Pressure abnormal/ temperature anomalies / thermocouple abnormal / action abnormal

    30) Hot press head counterpoint :
    Cylinder stop can be set at any position in the vertical direction

    31) Control mode :
    Touch screen + button operation Using Taiwan’s Wei Lun touch screen dual-core

    32) Parameter setting :
    According to the need to set up Store multiple sets of hot pressing parameters

    33) Rated voltage :
    180-220 (customizable 110V)

    34) Peak power :
    400-1100W (Supports 68X1.5X10 lengthened tool bit)

    35) Maximum power :
    1100W

    36) Actual power :
    580W

    37) Body size :
    1800X1200x1520mm(L*W*H)

    38) Machine weight :
    300KG

    Accessories

    With MD-880DH, we provide the accessories below for free.

    They are almost all the accessories needed by ACF/COF/TAB repairing, means no need buy other extra accessories.

    No. Picture Name Model No. Quantity Unit Specification Remark
    1  md-880dh Double Head Bonding Machine MD-880DH 1 Set Double Head 2016Year
    2  acf-ac-7206u-18-1-2mm ACF Anisotropic Conductive Film AC-7206U-18 1 Piece 1.5X50M Glass special
    3  acf-ac-2056r-35-2-0mm ACF Anisotropic Conductive Film AC-2056R-35 1 Piece 2.0X50M PCB special
    4  acetone Acetone Liquid BT-H1 2 Bottle 500ML
    5  absolute-alcohol Absolute Alcohol CH3CH2OH 2 Bottle 500ML
    6  ACF Removing Liquid ACF Removing Liquid G-450 1 Bottle 500ML
    7  Hitachi Blue Glue Hitachi Blue Glue 1 Bottle 100ML
    8  Fuji Silicone Fuji Silicone 1 Piece 50M
    9  teflon Teflon 2 Piece 50M
    10  T Type Electric Soldering Iron Heating Solder Iron 1 Piece 30W
    11  Constant Temperature Hot Air Station Removing Wind Station 825+Fan 1 Piece
    12  Liquid Bottle Alcohol Bottle 3 Bottle
    13  TAB Cutter TAB Cutter 1 Piece
    14  optical-microscope Optical Microscope 1 Piece
    15  LCD Test Board LCD Test Board HXV59 1 Piece
    16  Dial Test Indicator Dial Test Indicator 1 Piece
    17  Hex Key Wrench Allen key 1 Piece
    18  Air Compressor Air Compressor OTS550 1 Piece Mute Oil-free
    19  lvds-cable LVDS Common Specification 1 Piece
    20  Cleanroom Wipers Cleanroom Wipers 1 Piece
    21  cotton-swab Cotton Swab 1 Piece
    22  Hand-Hold Magnifier Handheld Magnifier 1 Piece
    23  Tweezers Precision Tweezers Elbow? Straight 2 Piece High Hardness Hyperfine
    24 Training 4 Days Free Training
